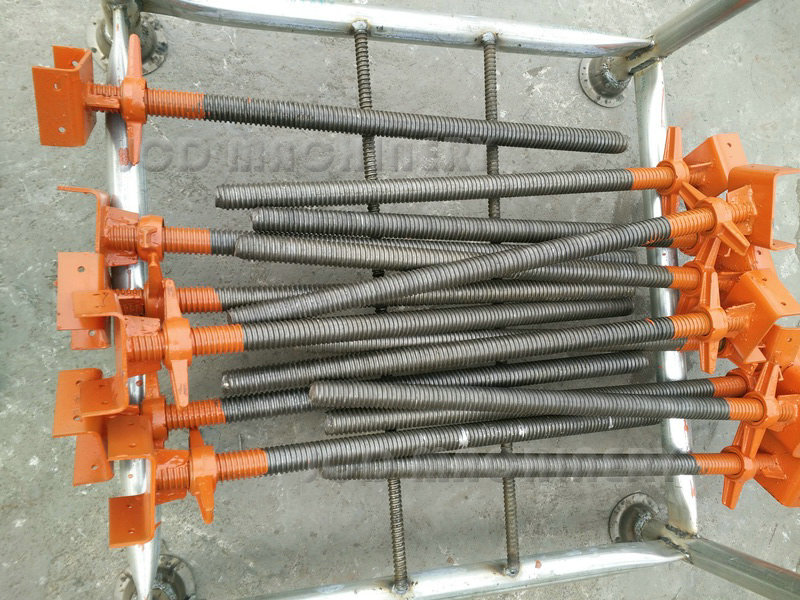

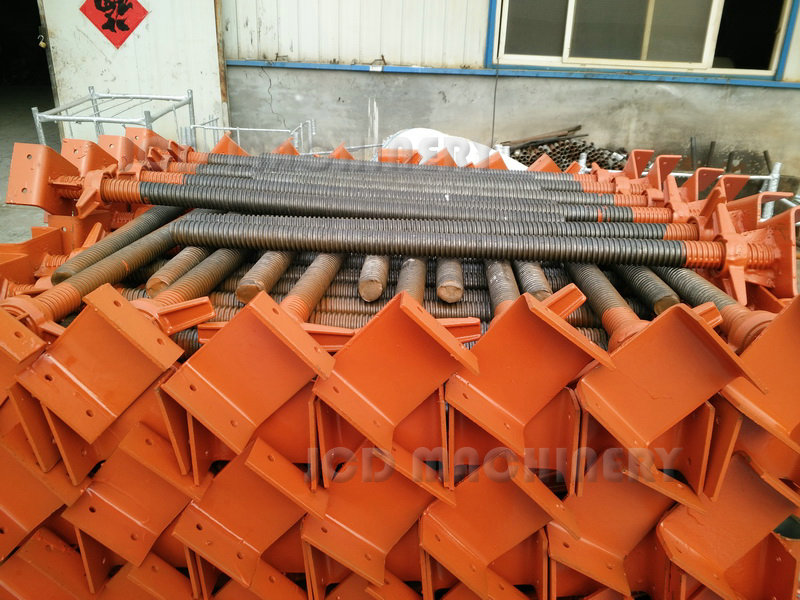

Scaffolding Adjustable U head Jack Base
Scaffolding Adjustable U head Jack Base
Scaffolding Adjustable U head Jack Base
1.Steel material: Q235
2.Length:Customized.
3.Hollow or solid screw bar.
4.Adjustable heigth

Product details

        Adjustable Screw Jack Base / U Head  is one of the most compaonents in scaffolding systems. It is windely used in ringlock scaffolding system,cuplock scaffolding system,coupler scaffolding system,frame scaffolding system, other scaffolding and formworks



Size
Base Plate
Jack Nut
Weight
34x4x400mm
150x150x5mm
0.55kg
2.616kg
34x4x600mm
150x150x6mm
0.55kg
3.384kg
38x4x400mm
150x150x5mm
0.5kg
2.724kg
38x4x600mm
150x150x6mm
0.5kg
3.571kg
38x4x780mm
150x150x5mm
0.5kg
3.998kg
48x5x600mm
150x150x8mm
1.0kg
5.594kg
48x5x820mm
150x150x8mm
1.0kg
6.76kg

Packing way :The normal package is steel pallets (Size: 1100*600*800MM). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
