Product details

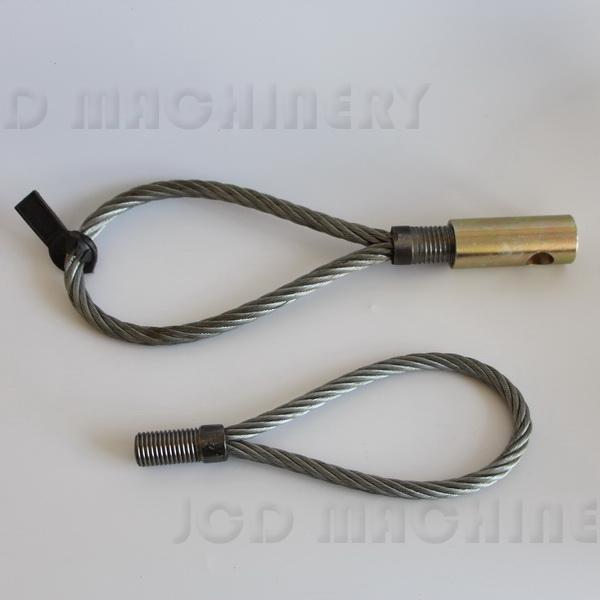

Lifting Loop/eye bolt is used for lifting precast concrete elements with precast anchors inside, the eye
bolt can work under both straight pull and shear pull loads while lifting loop is supposed to work under straight pull
situation only.
| Code | Thread mm | Length mm | Load rating |
| JLL5LL012 | RD12 | ~130 | 500 kg. |
| JLL5LL016 | RD16 | ~170 | 1,200 kg. |
| JLL5LL020 | RD20 | ~210 | 2,000 kg. |
| JLL5LL024 | RD24 | ~260 | 2,500 kg. |
| JLL5LL030 | RD30 | / | 4,000 kg. |
| JLL5LL036 | RD36 | / | 6,300 kg. |
| JLL5LL042 | RD42 | / | 8,000 kg. |
| JLL5LL052 | RD52 | / | 12,500 kg. |
