Lifting Socket Cylindrical

1.Size:RD12-RD52
2.Material:Carbon Steel
3.Surface:Galvanized
4.Place of Origin:Qingdao,China
5.Packaging:Plywood Cases
6.Payment Terms:T/T、L/C
7.Delivery Time:30 days
8.Sample:Free

Product details

Lifting sockets are widely used in the application of Precast concrete construction, such as lifting beams

wall and floor slabs. A reinforcement tail must be fitted to transfer the load into the concrete.

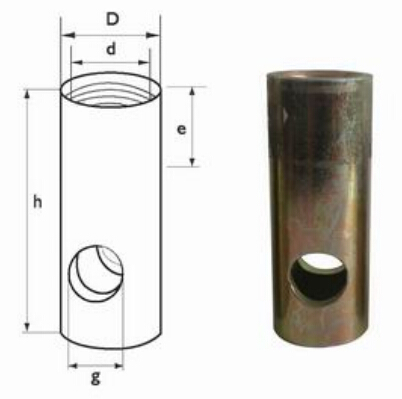

Code	Size	D mm	e mm	g mm	h mm	SWL kg
JR12040	RD12	15	22	8	40	500
JR14047	RD14	18	25	10	47	500
JR16054	RD16	22	27	13	54	1200
JR18065	RD18	24	34	13	65	2000
JR20069	RD20	28	35	15	69	500
JR24078	RD24	32	43	18	78	500
JR30103	RD30	40	56	22	103	1200
JR36125	RD36	48	68	27	125	2000
JR42145	RD42	54.5	80	32	145	500
JR52195	RD52	68	100	40	195	2000
