B-1 or B-2 Coil Ties Used as Insert
B-1 or B-2 Coil Ties Used as Insert
B-1 or B-2 Coil Ties Used as Insert
1.Size:B-1,B-2
2.Material:Carbon Steel
3.Surface:Zinc Plating
4.Place of Origin:Qingdao,China
5.Packaging:Plywood Cases
6.Payment Terms:T/T、L/C
7.Delivery Time:30 days
8.Sample:Free

Product details

B-1 or B-2 Coil Ties Used as InsertWhen used as inserts for lifting and handling thin wall



precast elements are extremely effective.Coil ties are available with an optional B-3 Screw-on Coil for use with the B-30



Screwon Plastic Cone to set the insert back from the face of the concrete.Minimum spacing between inserts is twice the



corner distance.

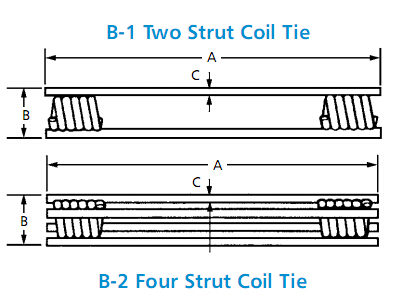

B-1 or B-2 Coil Ties

Insert

Type

Bolt

Diameter

Insert

Height

Minimum

Edage

Distance

Minimum

Corner

Distance

Safe

Working Load

Tension

Safe

Woking Load

Shear

A B C
B-1 3/4" 6" 8" 14" 4,500 lbs. 2,810 lbs. 6" 1-5/8" 0.375"
B-1 3/4" 6" 14" 21" 4,500 lbs. 4,500 lbs. 6" 1-5/8" 0.375"
B-1 1" 6" 8" 14" 5,477 lbs. 3,200 lbs. 6" 2-1/4" 0.440"
B-1 1" 6" 16" 24" 6,120 lbs. 6,120 lbs. 6" 2-1/4" 0.440"
B-1 1-1/4" 6" 10" 15" 6,750 lbs. 4,670 lbs. 6" 2-1/2" 0.440"
B-1 1-1/4" 8" 16" 24" 6,750 lbs. 6,750 lbs. 8" 2-1/2" 0.440"
B-2 3/4" 6" 8" 14" 5,536 lbs. 4,710 lbs. 6" 1-5/8" 0.375"
B-2 3/4" 6" 12" 16" 6,220 lbs. 6,220 lbs. 6" 1-5/8" 0.375"
B-2 1" 8" 10" 15" 7,897 lbs. 5,640 lbs. 8" 2" 0.375"
B-2 1" 8" 16" 24" 9,000 lbs. 9,000 lbs. 8" 2" 0.375"
B-2 1" 12" 10" 15" 9,000 lbs. 6,100 lbs. 12" 2" 0.375"
B-2 1" 12" 15" 22" 9,000 lbs. 9,000 lbs. 12" 2" 0.375"
B-2 1-1/4" 8" 12" 18" 9,400 lbs. 7,840 lbs. 8" 2-1/2" 0.440"
B-2 1-1/4" 8" 15" 22" 9,400 lbs. 9,390 lbs. 8" 2-1/2" 0.440"
B-2 1-1/4" 12" 15" 22" 13,500 lbs. 10,500 lbs. 12" 2-1/2" 0.440"
B-2 1-1/4" 12" 20" 30" 13,500 lbs. 13,500 lbs. 12" 2-1/2" 0.440"



Safe Working Load provides a factor of safety of approximately 4 to 1 in 3,000 psi normal weight concrete.



Safe Working Loads are based on 1/2” setback from face of concrete.
