F-62 Flared Thin Slab Coil Insert was designed for use in thin precast concrete elements
or for conditions where a longer insert cannot be used. This insert is closed at the back end of ferrule to keep concrete
from getting into the threads. The ferrule will accept only NC threaded bolts of appropriate diameters.

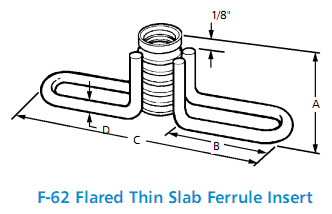

.jpg)
| F-62 Flared Thin Slab Coil Insert Selction Chart | |||||||||
| Bolt Diameter | Insert | Minimum | Minimum | Safe | Safe | B | C | D | Maximum |
| and Threads | Height | Edage | Corner | Working Load | Woking Load | Bolt | |||
| per inch | (A) | Distance | Distance | Tension | Shear | Engagement | |||
| 1/2"-13NC | 1-7/8" | 6" | 9" | 2,120 lbs. | 2,120 lbs. | 2" | 4-3/4" | 0.223" | 1" |
| 5/8"-11NC | 2-7/16" | 7" | 10" | 2,900 lbs. | 2,900 lbs. | 2" | 4-3/4" | 0.306" | 1-1/8" |
| 3/4"-10NC | 2-7/16" | 6" | 9" | 2,960 lbs. | 2,960 lbs. | 2" | 4-7/8" | 0.306" | 1-1/8" |
| 3/4"-10NC | 3-5/8" | 9" | 14" | 4,830 lbs. | 4,830 lbs. | 2" | 4-7/8" | 0.306" | 1-1/8" |
| 1"- 8NC | 2-7/16" | 6" | 9" | 3,080 lbs. | 3,080 lbs. | 2-3/16" | 5-1/8" | 0.306" | 1-1/8" |
| 1"- 8NC | 4-5/8" | 11" | 16" | 6,780 lbs. | 6,780 lbs. | 2-3/16" | 5-1/8" | 0.306" | 1-1/8" |
