F-63 Flared Thin Slab Coil Insert
F-63 Flared Thin Slab Coil Insert
F-63 Flared Thin Slab Coil Insert
1.Size:F-63
2.Material:Carbon Steel
3.Surface:Zinc Plating
4.Place of Origin:Qingdao,China
5.Packaging:Plywood Cases
6.Payment Terms:T/T、L/C
7.Delivery Time:30 days
8.Sample:Free

Product details

F-63 Flared Thin Slab Coil Insert is designed for use in very thin slabs or other conditions



where a longer insert cannot be used. Inserts should be set back 1/2” from the surface of the concrete, maintaining at



least 3/4” of concrete below the insert. Minimum spacing between inserts is twice the minimum corner distance.



F-63 Flared Thin Slab Coil Insert Selction Chart

Bolt

Diameter

Insert

Height

Minimum

Edage

Distance

Minimum

Corner

Distance

Safe

Working Load

Tension

Safe

Woking Load

Shear

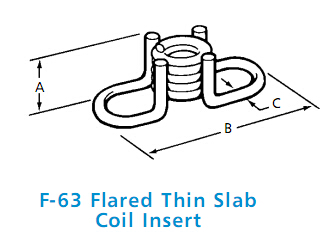

A B C
1/2" 1-3/4" 6" 6" 1,520 lbs. 1,090 lbs. 1-3/4" 4-1/8" 0.223"
3/4" 2-5/16" 8" 8" 2,170 lbs. 1,640 lbs. 2-5/16" 4-7/8" 0.306"
3/4" 3-1/2" 9" 9" 3,570 lbs. 2,600 lbs. 3-1/2" 4-7/8" 0.306"
1" 2-5/16" 8" 8" 2,460 lbs. 1,970 lbs. 2-5/16" 5-1/4" 0.306"
1" 4-1/2" 12" 12" 5280 lbs. 4,000 lbs. 4-1/2" 5-1/4" 0.306"



Safe Working Load provides a factor of safety approximately 4 to 1 in 3,000 psi normal



weight concrete.
